What this page tells you

Full iEEG reconstruction SOP for Penn patients: export pre-implant T1 MPRAGE and post-implant BONE_AX CT from Sectra into cnt-fs, convert to BIDS-named NIfTIs, label electrodes in voxtool, run run_penn_recons.py on Borel, build the ITK-SNAP workspace, upload to PennBox, and email the clinical team.

Reconstruction prep- things you will need to run or troubleshoot

Reconstruction Using GUI/Docker: https://github.com/penn-cnt/ieeg-recon/blob/main/python/docs/Running_iEEG-recon.md

  • This is the easier way to run the reconstruction.

PART I: PRE-IMPLANT:

You need two images to run the reconstruction: the pre-implant MRI and the post-implant CT. Export these images from Sectra into cnt-fs. Then convert the DICOMs to NIfTIs and put the NIfTI files on your desktop to run the reconstruction pipeline.

  • Open cnt-fs and create directory to which you will send the imaging:
    • Use the Big IP-Edge Client to connect to the UPHS VPN (see Lab Archives for instructions)
    • On the top left of your desktop go to:
    • You are now in cnt-fs. Go to /imaging_process_fs/imaging_raw/HUP/
    • Make a folder called RID###
    • Inside this folder:
      • Make a folder called preimplant_MRI
      • Make a folder called postimplant_CT
  • Open Sectra IDS7 on HUP computer:
    • Go to https://pennmedaccess.uphs.upenn.edu → choose Drives & Remote Access under Employee Resources → choose Remote Desktop Connection and open the download
    • Computer name: MJ0HKNDA
    • Enter your UPHS credentials
    • Mount cnt-fs. Instructions: Mounting cnt-fs
    • Open PennChart, Dept: Neurology South Pavilion (956)
    • Click Chart in the top left corner and find the patient's chart (cross-reference REDCap to find the MRN)
    • Click the down arrow at the top right of the screen (below the Log Out button and next to the wrench symbol) → Sectra IDS7
  • Export appropriate preimplant images in Sectra:
    • In Sectra, right-click on an MRI scan
    • Select Export to media
    • Click through the different pre-implant MRI scans and use the small arrow on the left to see all of their sequences
    • Find the sequence you need.
      • Pick a sequence from a recent scan rather than an old one
    • You need the MR T1 Axial mprage, which should be isotropic
      • A scan without contrast is much better, and PRE is preferred
      • PRE means pre-contrast. POST means post-contrast, and wholebrainseg would likely fail on a post-contrast scan
    • If no axial mprage fits these criteria, search for Sagittal T1 mprage imaging instead
    • Select only the sequence you want
    • Uncheck: ‘Include DICOM viewer’ and ‘Include annotations’
      • Leave the following checked: ‘Include DICOM images’, ‘Export requests’, ‘Export reports’
    • In Destination, select the preimplant_MRI folder you just made in cnt-fs in imaging_process_fs/imaging_raw/HUP/RIDXXX
      • cnt-fs must be mounted or this folder will not show up
    • Hit Export

  • Export appropriate postimplant images in Sectra:

    • Post-implant CT: this should be labeled BONE_AX_HEAD or anything beginning with BONE_AX_
      • This image should have at least 120 slices
      • The slices should be less than 2 mm thick. To check this, download the image, convert it from DICOM to NIfTI, open it in ITK-SNAP, and go to Tools → Layer Inspector → Info. The dimensions should be about 512x512x60 or 80, with z spacing < 2 mm

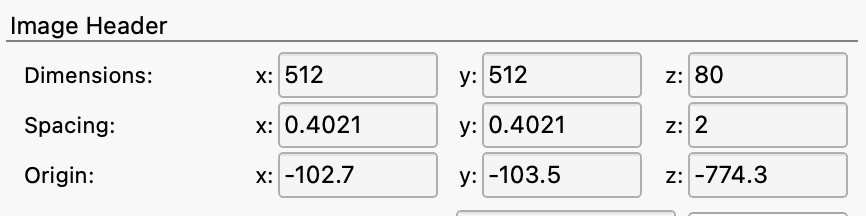

        Image header dimensions/spacing/origin fields
    • This is the CT scan done on the day of the implant
    • If no bone axial exists, let the neuroradiologist know, or call the Pavilion CT Scan Tech to have them make this for you. The number is in Important Contacts & Emergency Numbers
    • Right-click on the scan → Export to media
    • Select ONLY the bone axial head sequence in the CT
    • Uncheck: ‘Include DICOM viewer’ and ‘Include annotations’
      • Leave the following checked: ‘Include DICOM images’, ‘Export requests’, ‘Export reports’
    • In Destination, select the postimplant_CT folder you just made in cnt-fs in imaging_process_fs/imaging_raw/HUP/RIDXXX
      * cnt-fs must be mounted or this folder will not show up
    • Hit Export

At this point, you can close the remote desktop connection.

  • Convert from dicom to niftis in Desktop:

    • Keep cnt-fs mounted on your desktop
    • Open MRIcroGL
    • Select Import in the top left
    • Select Convert DICOM to NIfTI
    • For the pre-implant MRI, in Output Filename name the file: sub-RID####_ses-clinical01_acq-3D_space-T00mri_T1w
    • For the post-implant CT, in Output Filename name the file: sub-RID####_ses-clinical01_acq-3D_space-T01ct_ct
    • For Output Directory put your Desktop
      • Or you can put it directly into the sub-RIDXXXX folder
    • For Output Format leave it as Compressed NIfTI (.nii.gz)
    • Example:

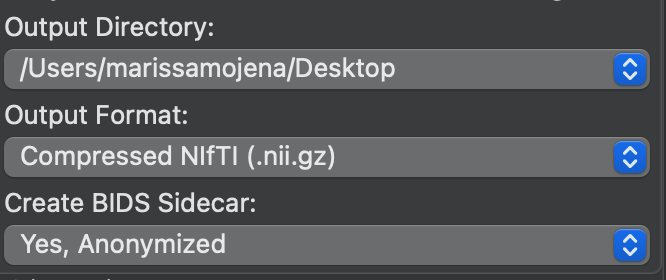

      dcm2niix output settings example
    • In Select Folder to Convert… drag and drop or select the DICOM folder of either the MRI or the CT scan from cnt-fs (postimplant_CT or preimplant_MRI) into the space that says “Drop files/folders to convert here”
      * The spinning rainbow wheel means that MRIcroGL is converting
  • Now that the converted niftis are made, create the following folders and put the niftis in the sub-RIDXXXX/ses-clinical01 folder on your Desktop:
    • Put the MRI NIfTI in the folder called anat
    • Put the CT NIfTI in the folder called ct
    • Once you label the electrodes, the electrode coordinates will go in the folder called ieeg

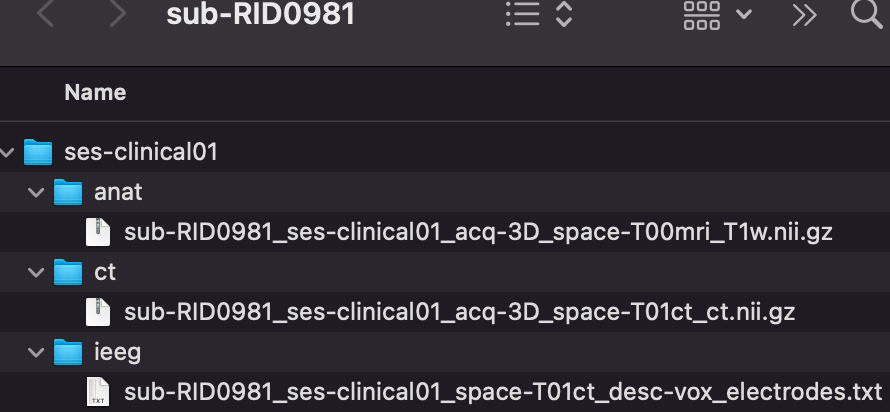

    • Parent folder: sub-RID####BIDS folder tree for sub-RID0981 (anat/ct/ieeg)
      • Sub-folder: ses-clinical01
        • anat
          • sub-RID####_ses-clinical01_acq-3D_space-T00mri_T1w.nii.gz
        • ct
          • sub-RID####_ses-clinical01_acq-3D_space-T01ct_ct.nii.gz
        • ieeg
          • sub-RID####_ses-clinical01_space-T01ct_desc-vox_electrodes.txt

  • At this point, you can close MRIcroGL and disconnect from cnt-fs/UPHS VPN

  • Check Voxel Spacing (not necessary by default; use this check if another site has a question)

    • The reconstruction pipeline accommodates variations in voxel sizing. If the spacing needs to be checked, it can be done with c3d.
    • Download c3d with the link at the top of this SOP, follow the instructions to install it, and put it in your Applications
    • c3d T00_RID###_(mprage or tse).nii.gz -info-full | grep pacing
      • CT: the first 2 terms should be <1 (0.5, 0.5, 1.0)
      • MR: needs to be roughly 0.9, 0.9, 0.9
      • If not, re-sample. For example, 0.4 needs to be resampled because a 0.4,0.4,1 resolution is too high for the available memory and will cause segmentation to fail
        • c3d -resample-mm .9x.9x.9mm -o
        • You can replace .9x.9x.9 with the desired size (it must include a decimal). Typically you are re-sizing the mprage to that size
        • Example: c3d sub-RIDXXXX_ses-clinical01_acq-3D_space-T01ct_ct.nii.gz -resample-mm .5x.5x1.0mm -o sub-RIDXXXX_ses-clinical01_acq-3D_space-T01ct_ct_resampled.nii.gz

PART II: Electrode Labeling

  • At this point, you can disconnect from the UPHS VPN and close MRIcroGL
  • Completing this process requires both the post-implant bone CT and the iEEG map created by the clinic
  • Go to your terminal to open voxtool:
    • Type:
      • conda activate voxtool_2
    • Followed by:
      • voxtool

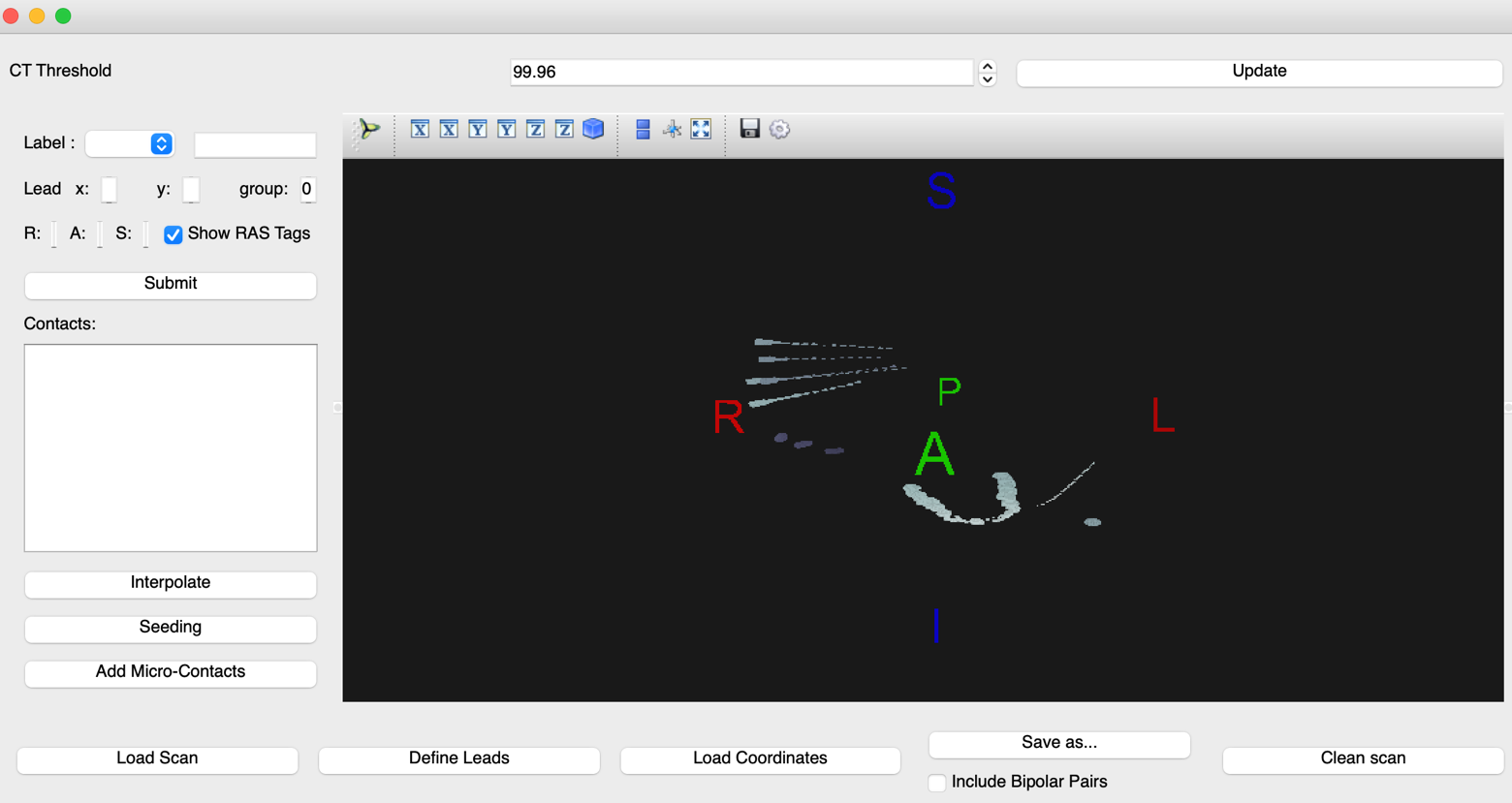

  • Load in the post-implant CT NIfTI using the “Load Scan” tab in the lower left corner of the application
    • Select the post-implant CT NIfTI that you just made
    • The CT image should appear within the black space
      • Check for display abnormalities: compressed CT, incorrect orientation of superior/inferior, anterior/posterior, and right/left.
        • If the CT image has high impedance, you can adjust the threshold from the original 99.96 to a more suitable threshold (for example 99.94 or 99.98)
          • When saving the completed electrode labels, the threshold MUST be returned to 99.96. Pre-save the coordinates at your labeled threshold to fill in any blanks if they get erased when returning to the original 99.96voxTool empty CT electrode viewer window

  • Define leads as specified by the clinic map

    • Click “Define Leads” on the lower left section of the application and a pop-up will appear
      • Select the lead “Type”: currently Penn is only using Depth electrodes
      • “Lead name” is listed in the implant map as an abbreviation. Dimensions is the number of contacts per implanted electrode
        Text<br/><br/>Description automatically generated with medium confidence
      • The X coordinate is the point closest to the center of the brain and should always be 1
        * The Y coordinate is the point closest to the skull and should be the maximum number of contacts within that electrode
        * After each lead name and dimension is entered, you must select Submit or this parameter will not be saved
        * You can check whether each lead has been entered with the correct number of electrodes in the display area under the Submit tab.
        * When this process is done, click Confirm
    • Begin labeling by selecting the label name from the drop-down menu
    • First pick a distinguishable electrode on the map/CT scan to begin with
    • Once you locate that electrode, click on the contact that is closest to the center of the brain and click Submit. This will automatically be label 1.
      • The next label in the “Label” column and the Y coordinate in the “Lead” column will now change to 2, meaning the 2nd contact of that electrode.
      • Change the label and Y coordinate to 12 to denote that you are labeling the last contact, the one closest to the skull. (In this example the last point is the 12th contact. If the total number of contacts is different, change these labels to that number.)
      • Count the remaining contacts of the electrode, select the final contact point, then click Submit
      • When the first and last contacts have been labeled, click “Interpolate” to auto-calculate the coordinates of the remaining contacts
        • If a label does not interpolate, the electrode may be curved and will need to be labeled manually
          • Find the contact number by counting from the point closest to the center of the brain (point 1) up to the unlabeled contact
          • Enter the number of the unlabeled contact in the “Label:” row and again in the “Y:” coordinate space
          • Select that contact, then select “submit”
        • If you are clicking and nothing is registered, check the terminal to see whether your mouse clicks are being registered
        • If they are not, exit and start the process again by reloading the CT image and entering the electrodes/contacts

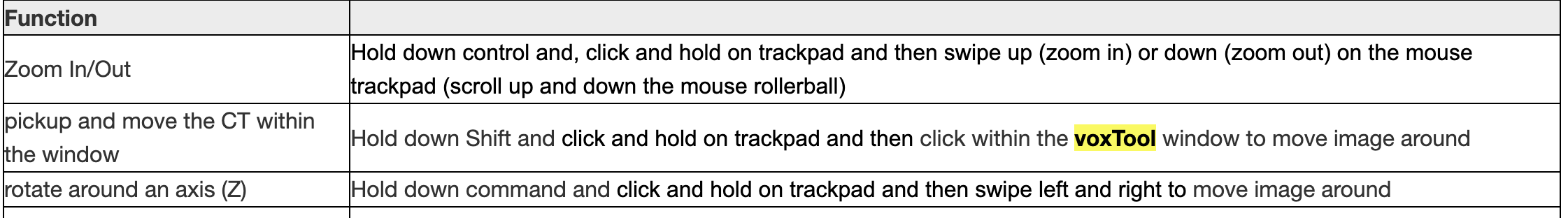

          Table of voxTool mouse/keyboard controls
    • To save the completed labeling, select “Save as…”
      * Change the file name to sub-RID####_ses-clinical01_space-T01ct_desc-vox_electrodes

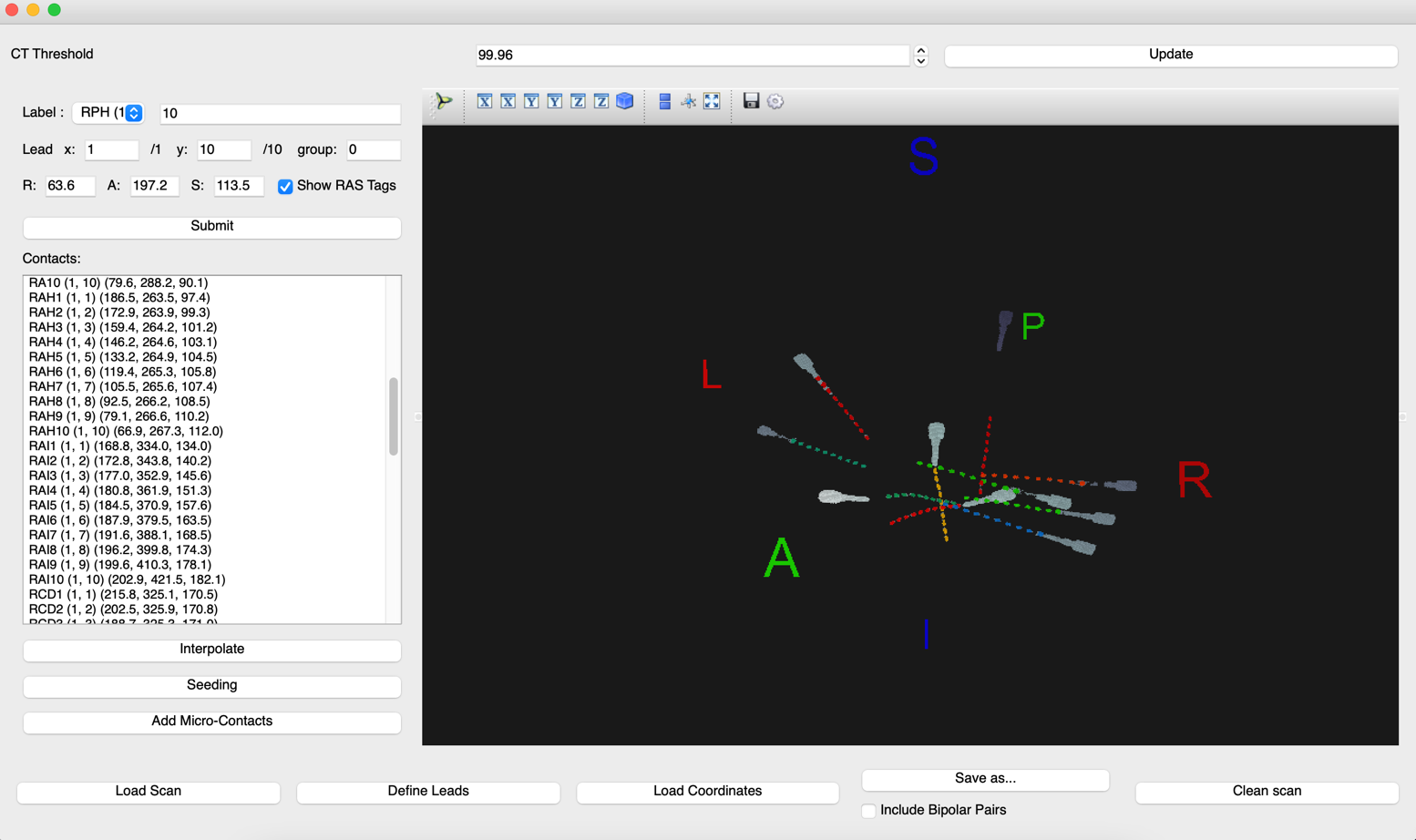

      * voxTool with electrode contacts labeled, no subject identifier

  • Select the folder where the labels should export (sub-RID####/ses-clinical01/ieeg)

  • Set the file type to “ TXT (*.txt) “
  • Edit voxel coordinates text file for format compatibility
    • The reconstruction looks for coordinates that are integers (no decimals).
      • Open the voxel coordinate text file with Sublime Text (or a text editor of your choice)
      • Press command + f (Mac) or control + f (Windows) and type “.0” in the search bar.
      • Select “find all” and delete all “.0” characters.
      • Re-save the coordinates.

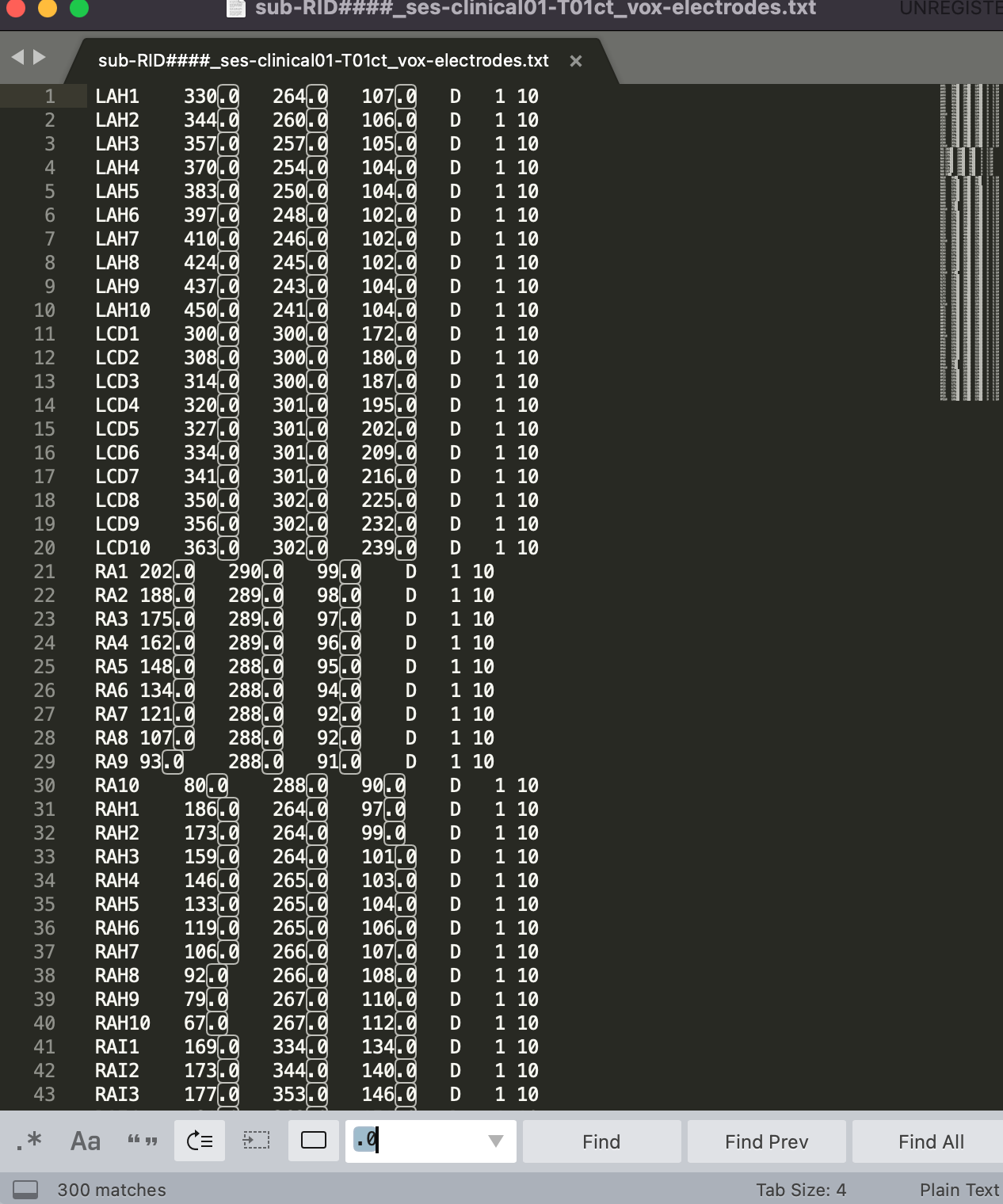

Electrode voxel coordinate text file, sub-RID#### placeholder name

PART III: Running Reconstruction: can be done via Docker or terminal with Python in Leif (mounted via Borel)

  • Set up the correct folder structure in your Desktop:
    • Parent folder: sub-RID####A screenshot of a phone<br/>Description automatically generated
      • Sub-directory: ses-clinical01
        • anat
          • sub-RID####_ses-clinical01_acq-3D_space-T00mri_T1w.nii.gz
        • ct
          • sub-RID####_ses-clinical01_acq-3D_space-T01ct_ct.nii.gz
        • ieeg
          • sub-RID####_ses-clinical01_space-T01ct_desc-vox_electrodes.txt

  • Move the sub-RID#### folder from your desktop into the Borel server:

    • Make sure you are connected to AirPennNet. If not, follow these steps:

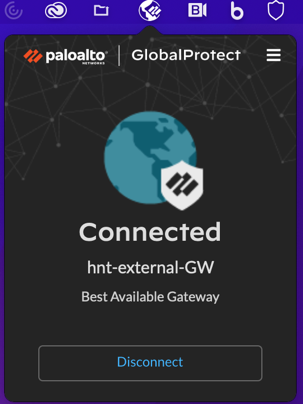

      • Turn on GlobalProtect and sign in with your PennKey and password when promptedGlobalProtect VPN connected status (hnt-external-GW)
    • Open the terminal and navigate to your Desktop with this command: cd Desktop
    • Then type the command below to copy the sub-RID#### folder into Borel:
      • scp -r sub-RID#### pennkey@borel.seas.upenn.edu:/mnt/leif/littlab/data/Human_Data/recon/BIDS_penn
      • (put your PennKey where it says pennkey)
      • If you get the error "file not found", try typing the command manually rather than copying and pasting

  • Change the permissions of the sub-RID#### in Borel

    • In the terminal, ssh into the Borel server with:
    • Type:
      • cd /mnt/leif/littlab/data/Human_Data/recon/BIDS_penn
    • Type:
      • chmod 777 -R sub-RID####
    • Then navigate to the code folder with this command:
      • cd ../code

  • Run the reconstruction with this code:
    python run_penn_recons.py

    • This code runs through every subject in the BIDS folders and creates a derivatives folder for the output. If a subject already has a derivatives folder, it will not be reconstructed. If the script finishes quickly, there is probably an error.
    • If an error has occurred and you need to re-run a subject, you must first delete the derivatives folder.
      • cd pennkey@borel:/mnt/leif/littlab/data/Human_Data/recon/BIDS_penn
      • cd into the sub-RID folder you need to delete from
      • rm -r the derivatives folder
      • Also delete it from your desktop

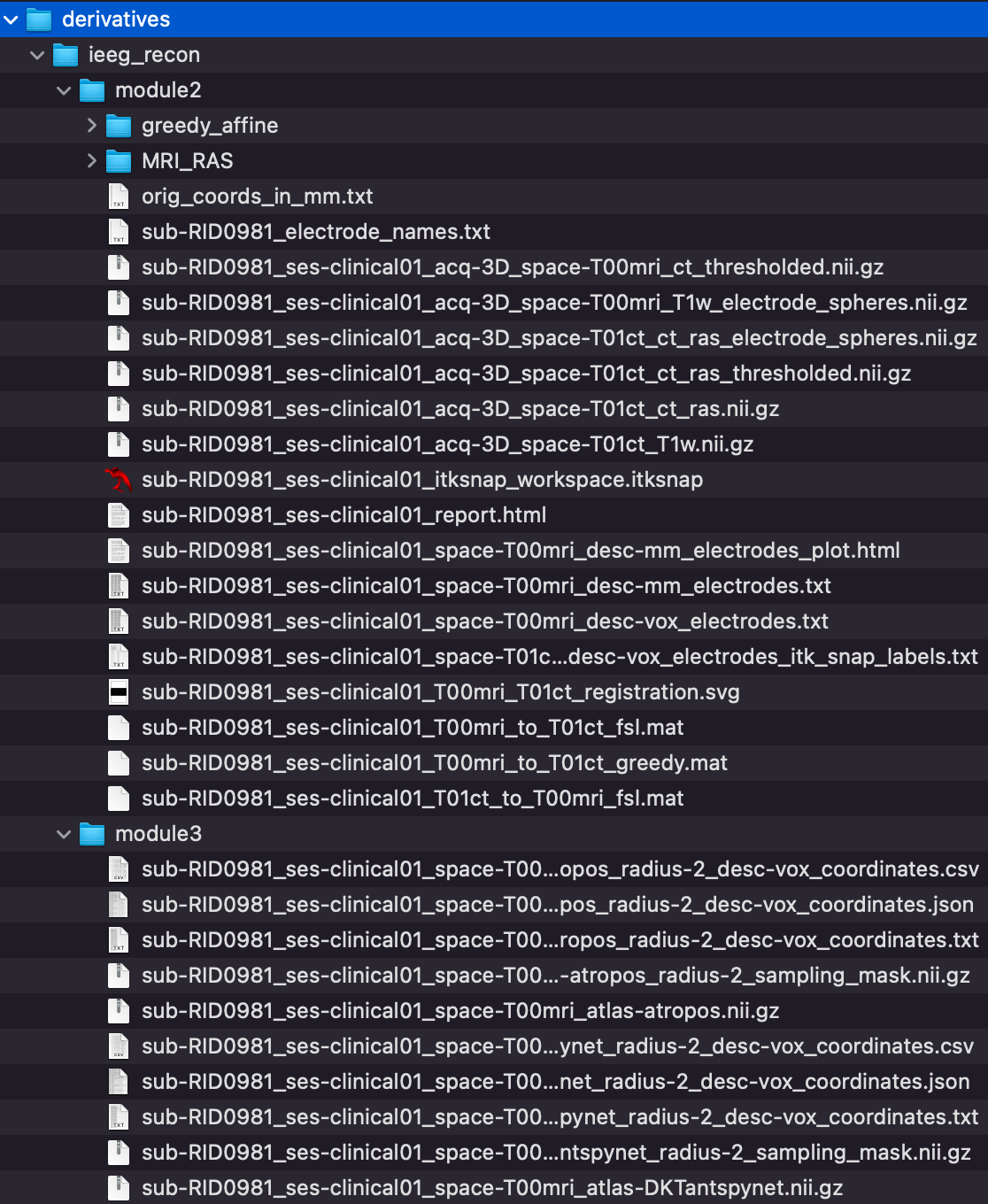

    • The output of the reconstruction is module 2 (containing the ITK-SNAP workspace) and module 3: Finder listing of ieeg_recon derivatives for sub-RID0981
  • Move the sub-RID#### folder from Borel back into your local Downloads so you can upload to Box:
    • First: Open a new terminal window
    • Go to your Downloads with: cd Downloads
    • Then type:

PART IV: Create ITK-SNAP Workspace

  • Go to the module2 folder in your Downloads (sub-RID####/ses-clinical01/derivatives/ieeg_recon/module2)

  • Right-click on the sub-RID####_ses-clinical01_itksnap_workspace.itksnap file and open it in ITK-SNAP (this file has the red ITK-SNAP icon next to it)

    • Scroll through to make sure the colored electrode coordinates line up with the coregistered MRI/CT
      If this does not work, try these steps:

  • Load "sub-RID####_ses-clinical01_acq-3D_space-T01ct_T1w.nii.gz" into ITK-SNAP

  • Load "sub-RID####_ses-clinical01_acq-3D_space-T01ct_ct_ras_thresholded.nii.gz" as another image
  • Load "sub-RID####_ses-clinical01_acq-3D_space-T01ct_ct_ras_electrode_spheres.nii.gz" as a segmentation

  • Save everything as a workspace

  • Import the label descriptions so that electrode names are visible when hovering over each coordinate

    • Click Segmentation and scroll to Import Label Descriptions.
    • The Open Label Descriptions pop-up will prompt you to specify the label description file
    • Click Browse and select sub-RID####_ses-clinical01_space-T01ct_desc-vox_electrodes_itk_snap_labels.txt
  • Save the ITK-SNAP file with these edits.
  • Upload the reconstruction to the PennBox CNT Implant Reconstructions folder.
    • Go to the CNT Implant Reconstructions folder
    • Make a folder called RIDXXX_HUPXXX
    • Go into this folder
    • Drag and drop the entire sub-RIDXXXX folder from your Downloads (NOT YOUR DESKTOP) into this Penn Box folder
    • Upload the HUPXXX_anon implant map PDF into this folder as well

Part V: Send email to Clinical Team to notify reconstruction is complete and ready to access

  • Create a shared link to the subject folder in Penn Box and set it so that anyone with the link can view and download
  • Only from a PennMedicine email account, send this link to the Epilepsy MDs NPs group and to the Epilepsy Fellows group, and cc the neuroradiologist, Gabriela Bustamante and your co-CRC
